STATION 00 — ENTRY
See the whole cave
before you swim it.
CaveViewer is a free 3D viewer built for cave divers and survey teams, made to open photogrammetry scans too large for anything else — models far bigger than your computer's memory — and fly through them smoothly on Windows, macOS, and Linux.

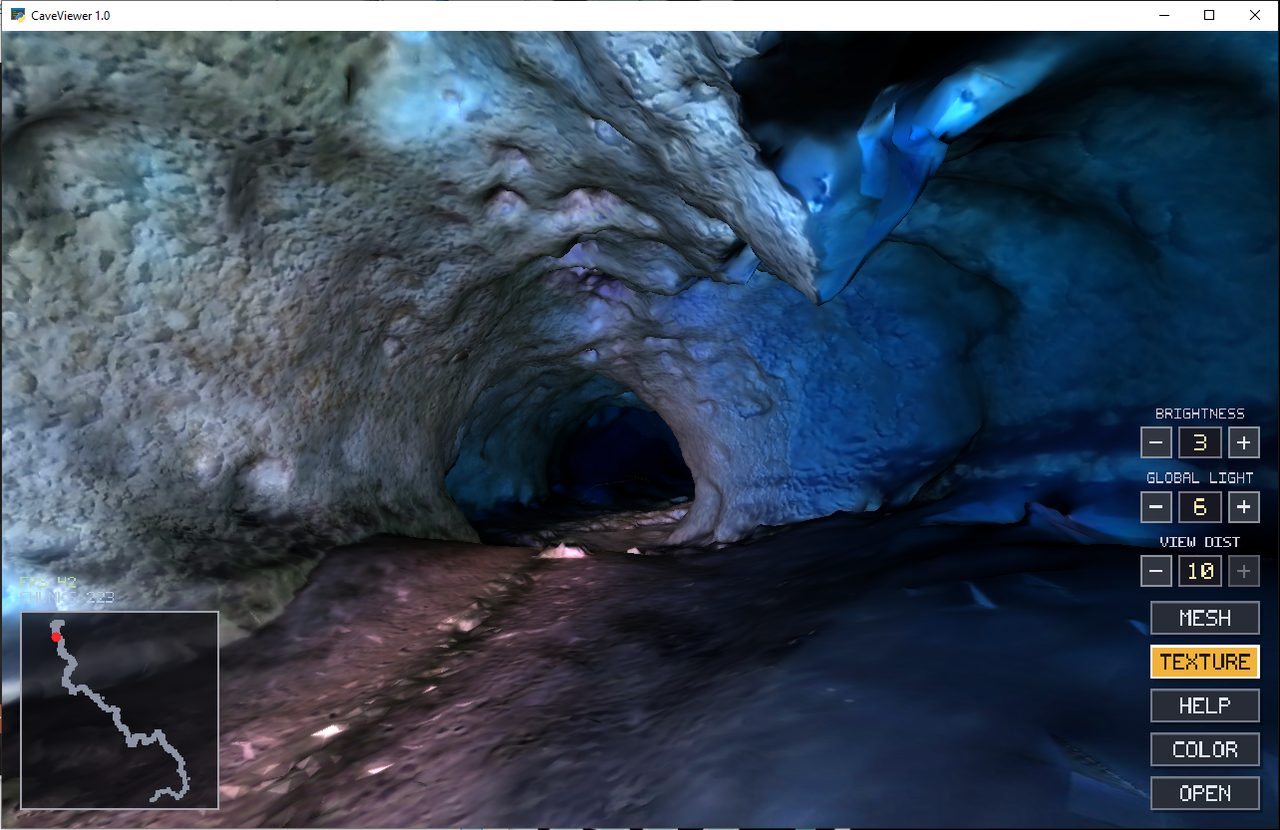

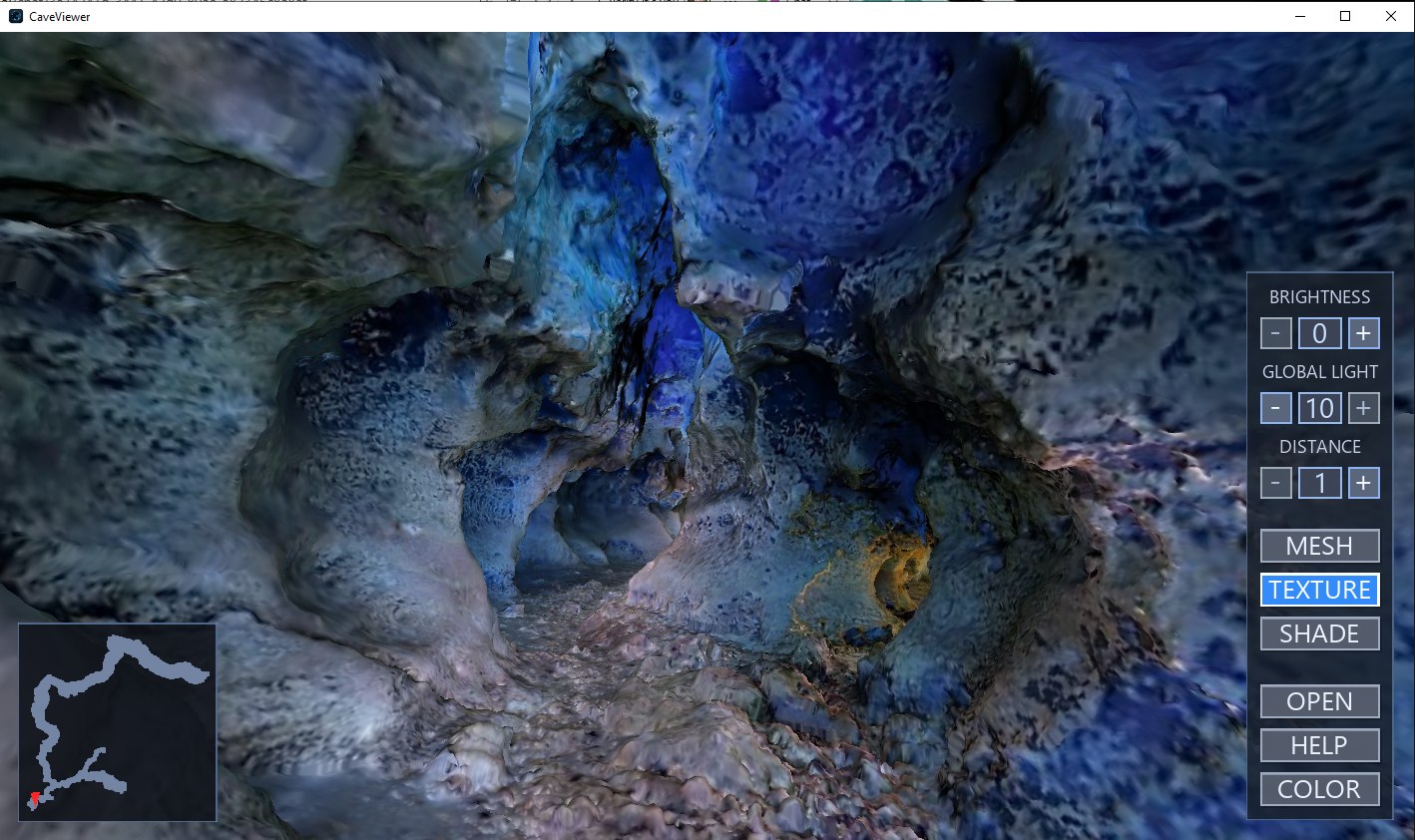

Inside an actual cave scan, fully textured — minimap bottom-left, and the full control column bottom-right: brightness, global light, distance, then mesh / texture / shade / open / help / color / rec.
Station 01
The Tool
Built for scans too big to open anywhere else
A multi-gigabyte cave scan will choke most viewers. CaveViewer splits the model into a 3D grid of spatial chunks and only keeps the chunks near your current position loaded — so frame rate stays smooth no matter how large the full system is.
Navigation
Fly through it like you're really there
Free-fly camera with no gravity or floor — WASD to move and strafe, E and Q for up and down, and hold left-click while moving the mouse to look around (or use J/L/I/K on the keyboard). Z/X barrel-roll the view, and Shift is a speed boost. Camera bookmarks let you return to a spot instantly — save with Ctrl+1–9, jump back with 1–9, clear one with Del+1–9.
Lighting
Headlamp, plus an ambient fill when you need it
Adjustable headlamp brightness for the cone in front of you, and a separate global light that raises a flat ambient fill across the whole cave when you want to see everything at once.
Orientation
A minimap that knows where the passage actually is

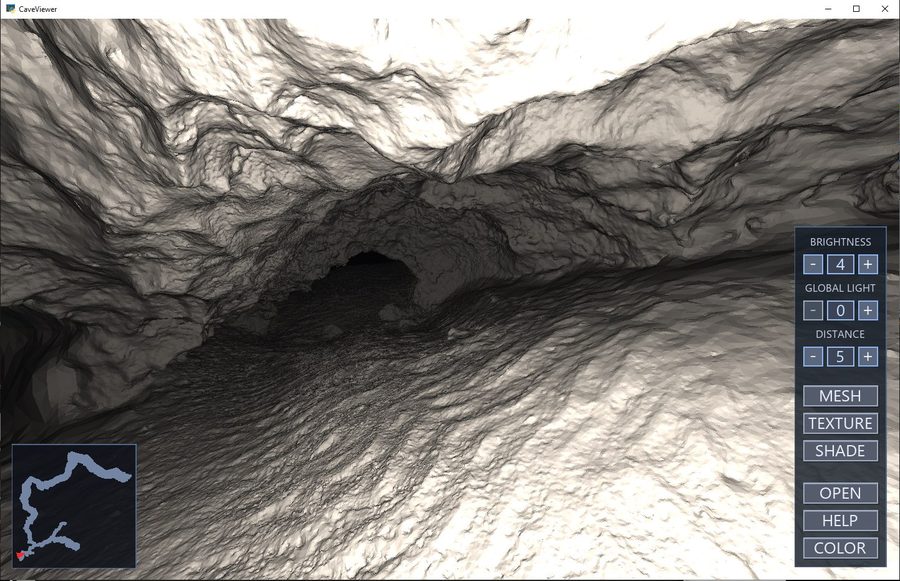

Click anywhere on the minimap to jump there instantly — it lands you inside the actual passage near your current depth, not floating in empty rock. Ctrl+0 levels your view back to the horizon without moving you.
Inspection
Mesh, texture, or flat-faceted shading

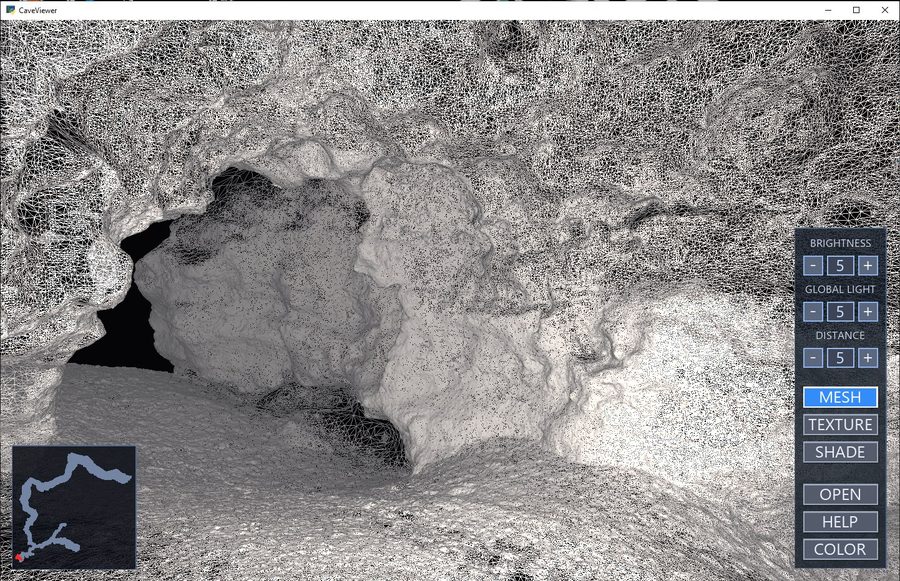

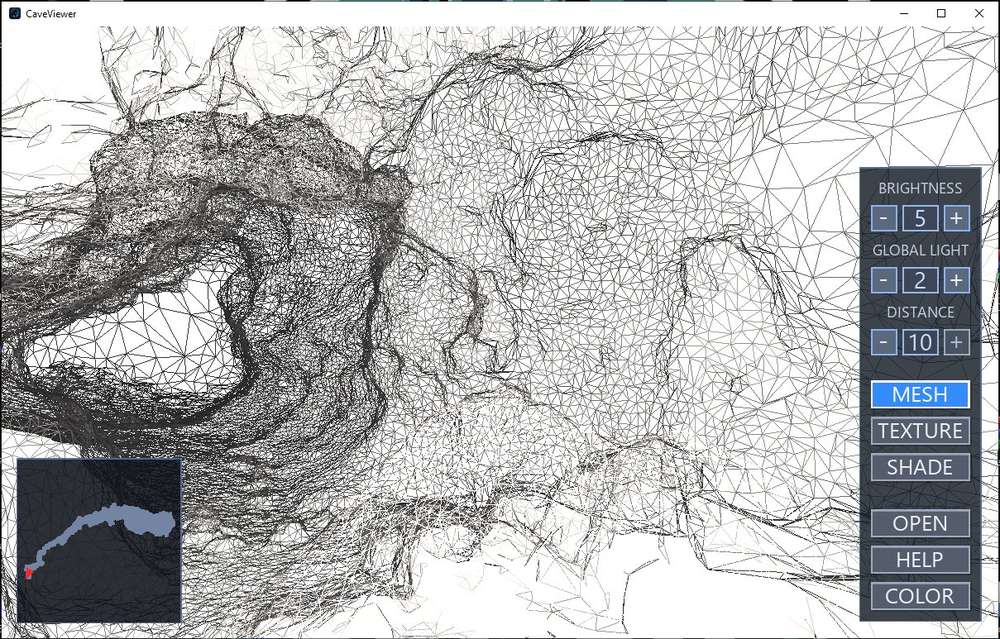

Toggle wireframe to inspect scan density and quality, toggle the photo texture on or off, and switch between smooth and flat-faceted shading to read the raw triangulation of the scan.
Recording
Record a clean flythrough to MP4
Press REC to arm a 3-2-1 countdown; the interface clears and CaveViewer records your flight straight to an MP4 file — no in-memory buffer. Stop or cancel any time with Shift+R. Full breakdown below.
Multiple maps
Switch caves without closing the program
Open a different map mid-session with one click, or Ctrl+O. First-time imports show real progress in-window; maps you've opened before load instantly from a local cache.
Always current
Download updates from the launch screen
CaveViewer checks a signed update manifest on launch. Start a download and keep working — it continues in the background. After verifying the package, CaveViewer keeps it in your Downloads folder and reveals it for you to install manually. It never runs or installs anything for you.
Any machine
Windows, macOS, and Linux, the same way
Download the build for your system and run it. The controls and features are identical everywhere.
No size limit
Built for scans way past what fits in memory

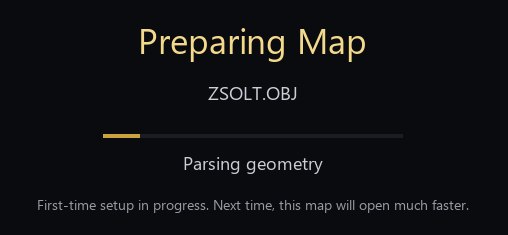

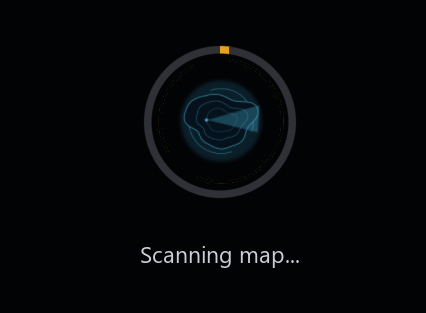

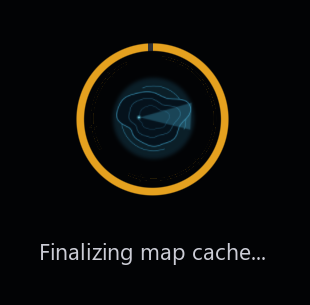

Very large exports are read in a single streaming pass and written straight to disk in spatial pieces, so opening a scan never requires loading the whole thing into RAM at once — even when the file is far bigger than your computer's memory. The first time a map opens, this one-time import shows its progress on screen:
Tuning
Preferences for underpowered laptops and huge caves
An optional Preferences panel lets you cap how much RAM and GPU memory CaveViewer uses, how many background threads load and import chunks, and how big those chunks are — useful on a laptop, or when importing a scan on the larger end. Full breakdown below.
Customization
Set the void to whatever color helps you see

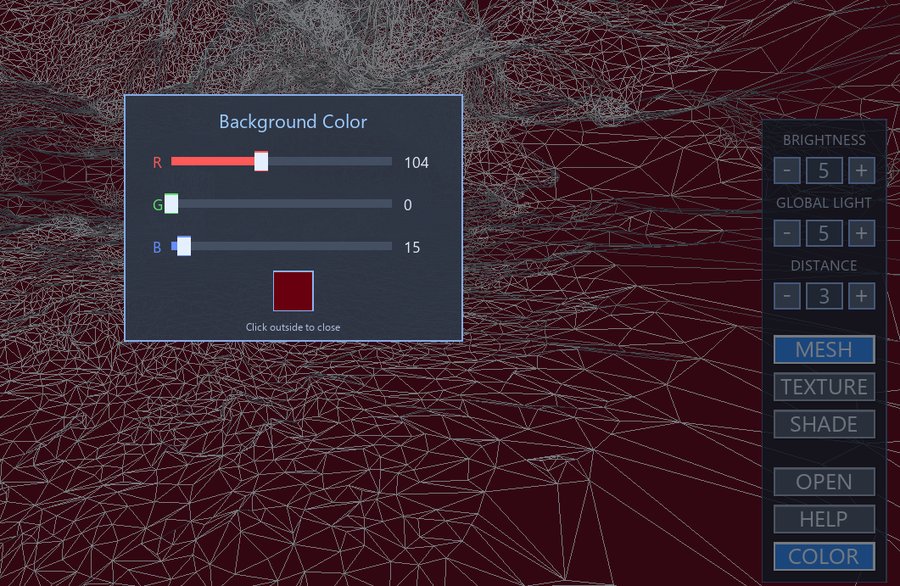

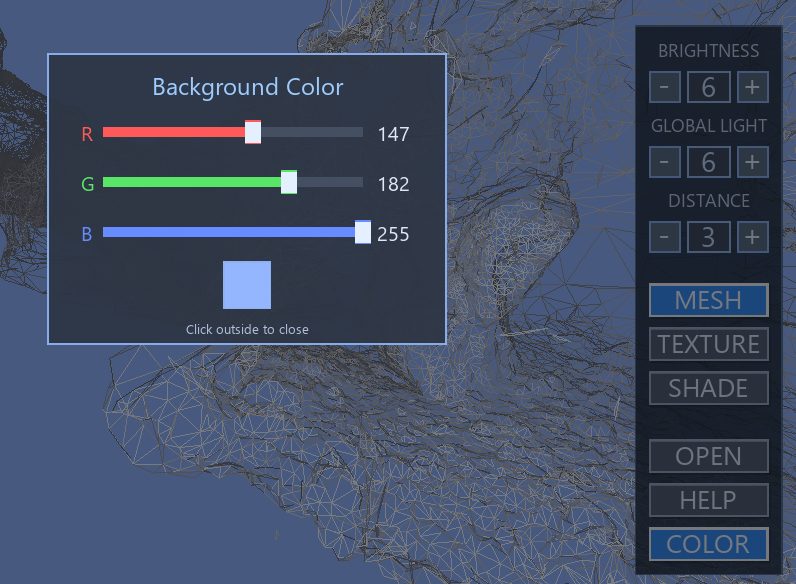

The empty space beyond the scan doesn't have to be black — drag the R, G, and B sliders in the Color panel to pick a background that makes wireframe or thin passages easier to read against.
Station 02
Compatibility
Bring your own scan
CaveViewer reads the formats survey and photogrammetry software actually export. Point it at a folder, and it works out the rest.
Station 03
On Screen
Every control in one column, one corner
Every adjustable control — headlamp brightness, global light, render distance, the mesh/texture/shade toggles, the color picker, opening another map, and recording — lives in a single column anchored to the bottom-right corner, and applies live while you're still flying.

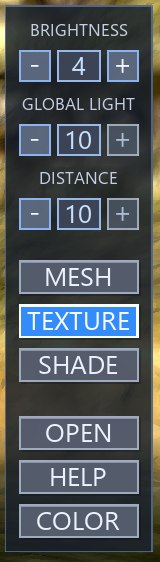

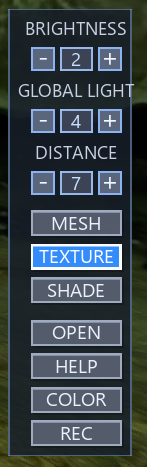

The whole column, live — the three steppers up top, then Mesh / Texture / Shade, then Open / Help / Color / Rec.

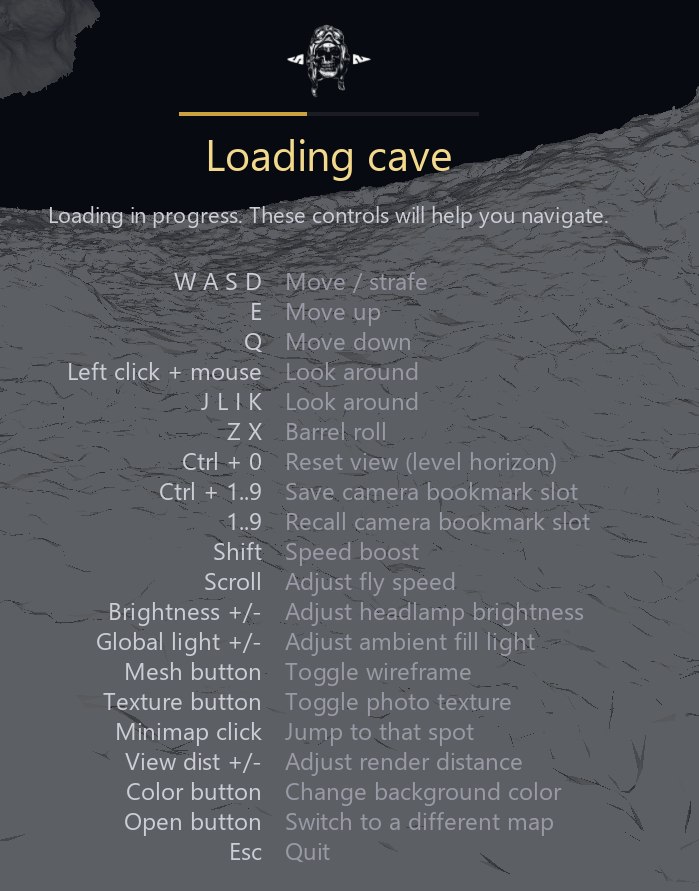

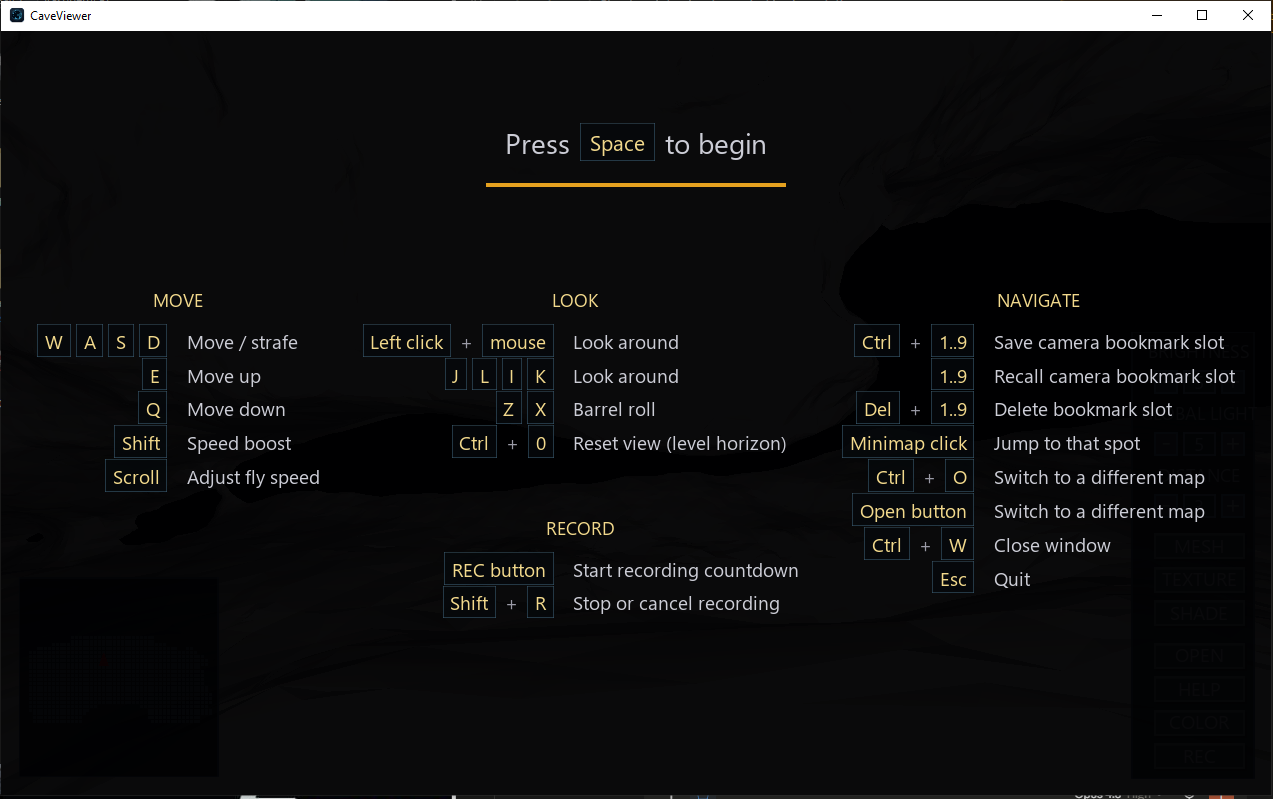

This full reference appears automatically while a map loads, and any time after via the HELP button — grouped into Move, Look, Navigate, and Record, including the camera bookmark slots.
Station 04
On The Record
Record a clean flight to share
CaveViewer can capture your flythrough as a video, straight to disk while you fly — nothing is held in memory, so even a long recording won't balloon your RAM.
Press REC to start a short 3-2-1 countdown. The minimap, controls, and control column disappear so nothing clutters the shot, then recording begins. Press Shift+R to cancel the countdown or to stop a recording in progress.
Files are saved as MP4 to ~/Movies/CaveViewer/ (you can change this folder under Preferences → Storage), scaled to 720p by default to reduce recording load. Set CAVEVIEWER_RECORDING_MAX_HEIGHT=1080 to opt back into 1080p. Each file is named for the date and time it was captured, e.g. CaveViewerDive-20260715-162609.mp4.

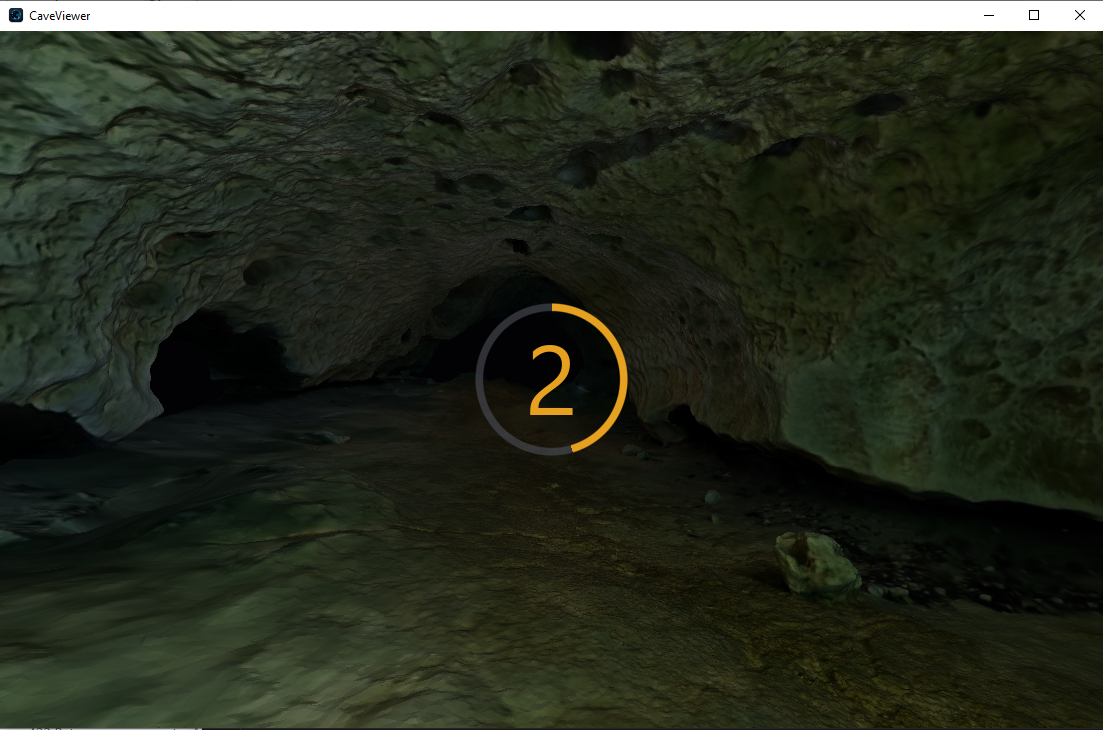

REC armed — the interface clears and an amber ring counts down before capture starts.

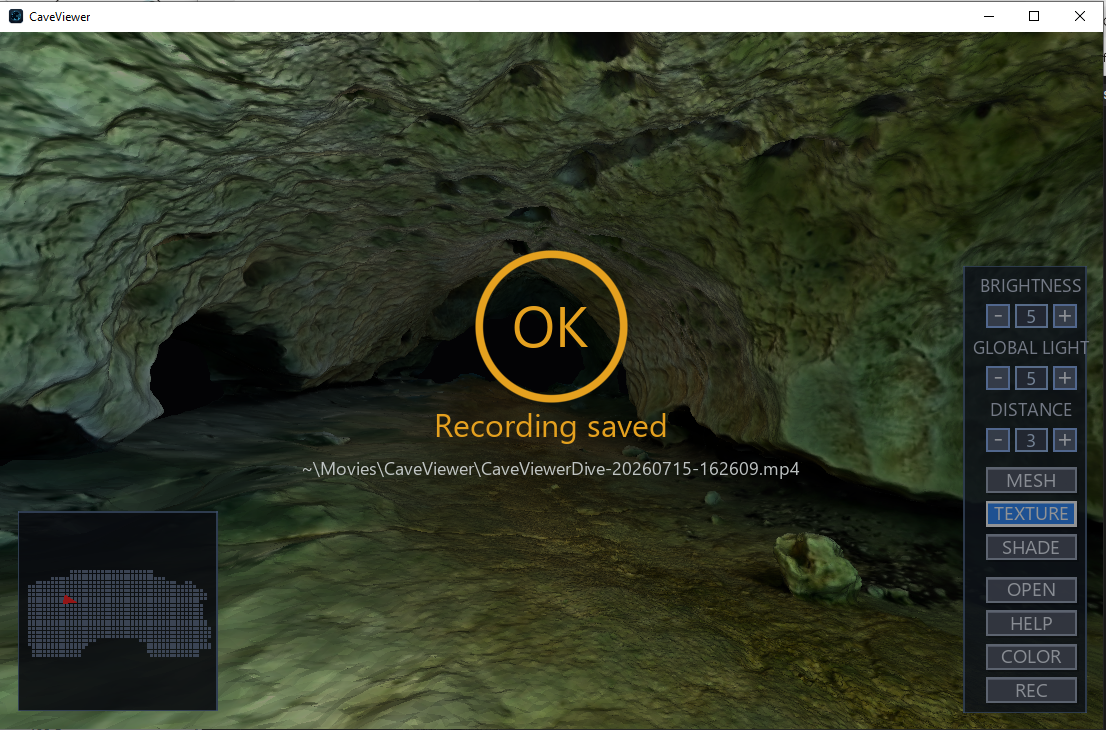

When you stop, CaveViewer confirms the save and shows exactly where the MP4 landed.
Station 05
Getting In
Install
Grab the build for your system — no Python install, no terminal commands to memorize, no dependencies to hunt down.
-
Download the build for your platform
From the Releases page, grab the
.dmgfor macOS (Apple Silicon or Intel), the.zipfor Windows, or the Linux x86_64.AppImage. -
Install it
macOS: open the DMG and drag CaveViewer into Applications. The first time it opens, go to Settings → Privacy & Security and allow it to run.
Windows: extract the zip and double-clicklaunch.bat. It installs Python if needed, the Visual C++ runtime and required libraries, opens a firewall rule so update checks can reach GitHub, and creates a Desktop shortcut.
Linux: runchmod +x CaveViewer-*.AppImage, then launch it directly — no system install needed.

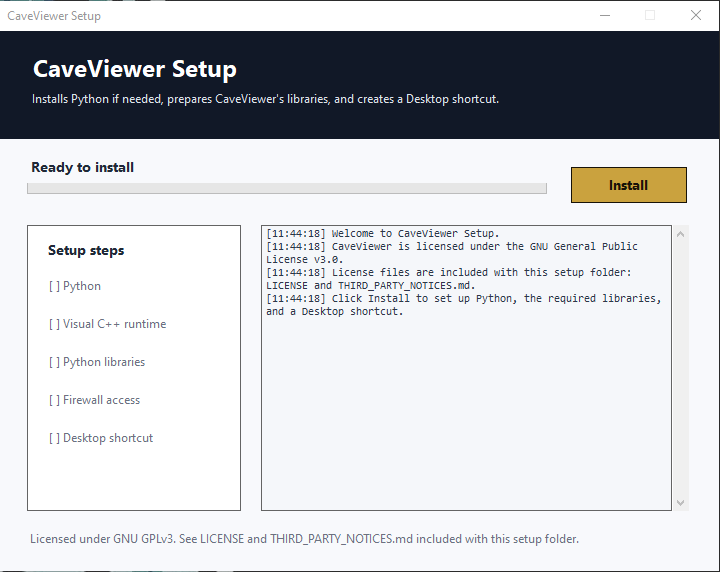

Ready to install

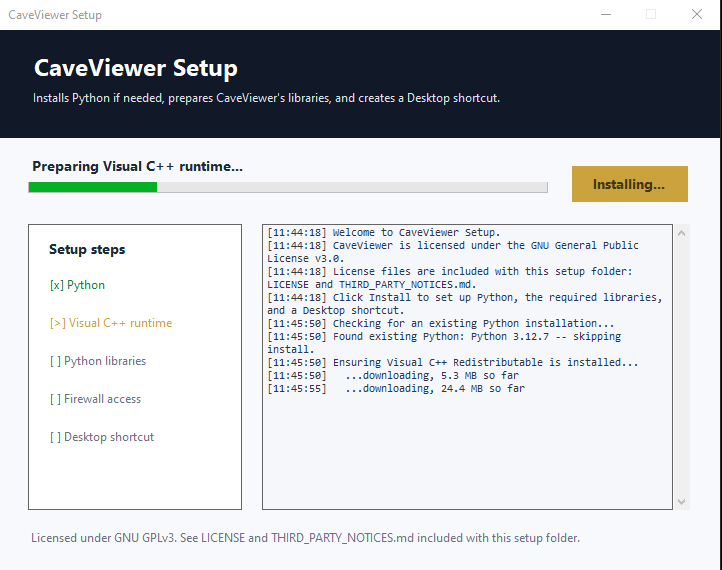

Installing, live log

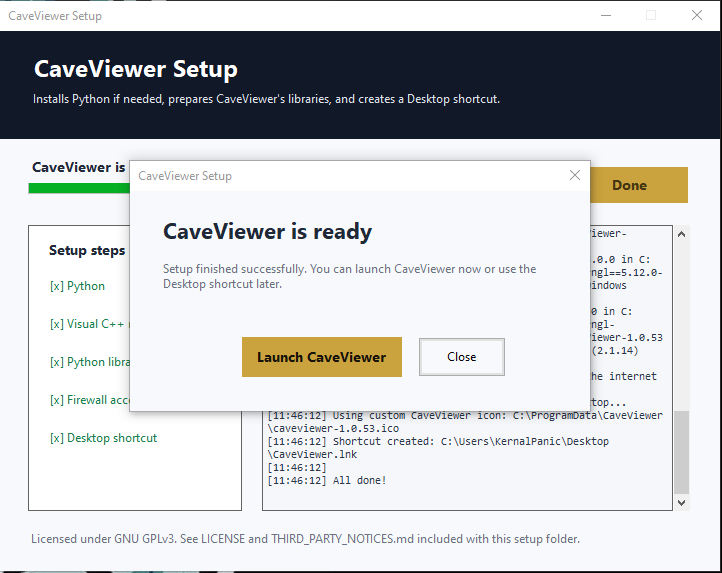

Ready to launch
On your desktop
-
Launch CaveViewer
You'll land on the splash screen. Click Open Map Folder… — or use the Map Library if you don't have a scan of your own yet and want to try it first.
-
Point it at your map
Choose the folder with your
.obj(+.mtl+ textures) or.glbfile. The first time you open a new map it imports and caches it once — every open after that is instant.

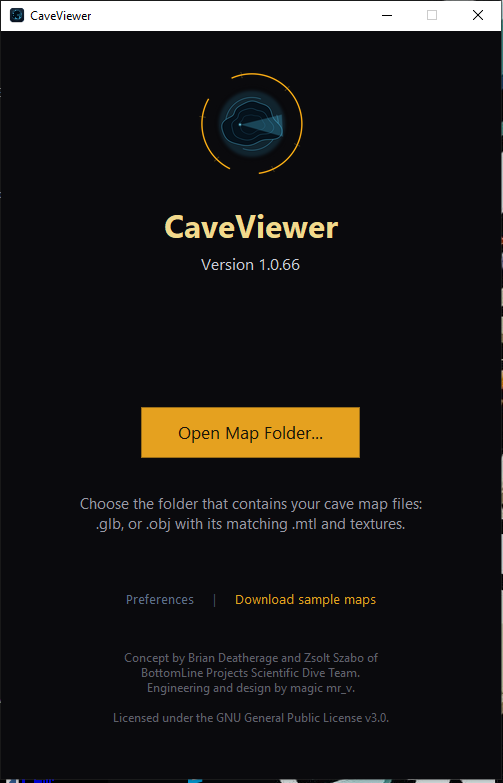

What you see on launch — click Open Map Folder… or try a standard library map.

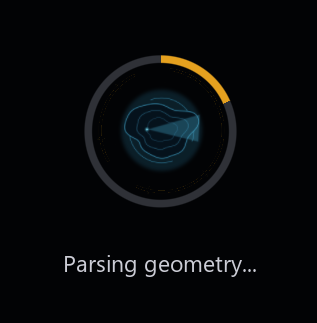

First time opening a new map only — every open after this is instant.

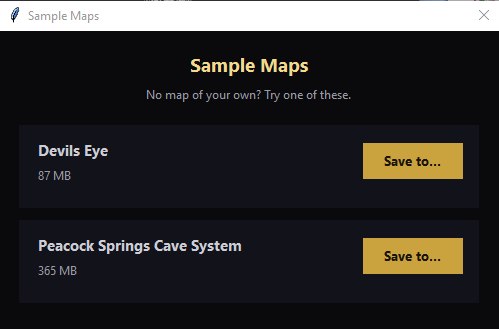

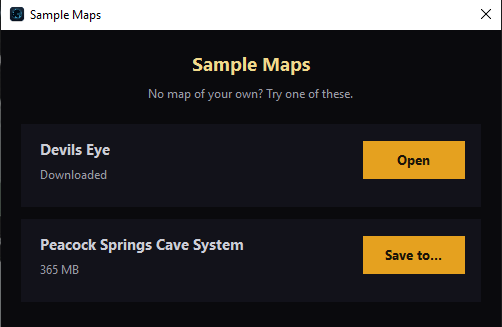

No scan of your own yet? Download a real cave system — Devils Eye or Peacock Springs — from the Map Library and open it the same way.
Station 06
Tuning
Preferences, explained
Most people never need to open this. It's here for large maps on constrained hardware, or for squeezing more out of a strong machine. Open it from the splash screen with Preferences. Streaming settings apply live to your current session; Import settings only affect a map the next time it's imported or re-imported; Storage sets where recordings are saved.
Streaming
Applies immediately, every launch
Share of total system RAM that loaded chunks are allowed to use. Higher keeps more resident at once, at the cost of leaving less RAM for everything else.
Share of the detected GPU memory budget used for loaded chunks. Push it too high on a weaker card and you risk stutter instead of smoothness.
Optional manual GPU memory ceiling. Only needed if auto-detection gets your GPU's size wrong; a smaller detected GPU still wins.
Cap on background chunk-loading threads. The actual count can drop lower when CPU or RAM is constrained.
Logical CPUs held back from the loading pool, so streaming doesn't take over the whole machine.
Hard cap on how many ready chunks are uploaded to the GPU each frame. A higher cap brings new chunks on screen faster when flying fast, at the cost of occasional frame-time spikes.
Hard cap on material groups uploaded from one ready chunk each frame. This spreads huge chunks across multiple frames instead of uploading all VBOs and textures at once.
Soft per-frame time budget for chunk uploads. A larger budget uploads more before yielding — smoother streaming, but a slightly heavier hit each frame it happens.
Import
Only affects the next import / re-import
Spatial chunk size used when building new cache data. Smaller chunks give finer streaming control in tight, twisty passages; larger chunks mean fewer draw calls in big open rooms.
A small yield during OBJ scanning keeps the machine responsive on slower disks, at the cost of a slightly longer import.
Cap on chunk-cache writer threads for the one-time import. The actual count can drop lower when CPU or RAM is constrained.
Logical CPUs reserved during import so the rest of your system stays usable while a huge map is being chunked.

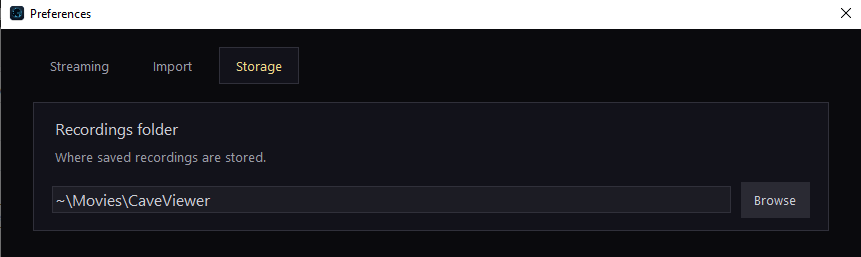

Storage
Where files are saved
Where saved MP4 flight recordings are stored. Point it anywhere writable, or a folder that can be created.
Where CaveViewer stores downloaded Map Library maps. Point it anywhere writable, or a folder that can be created.

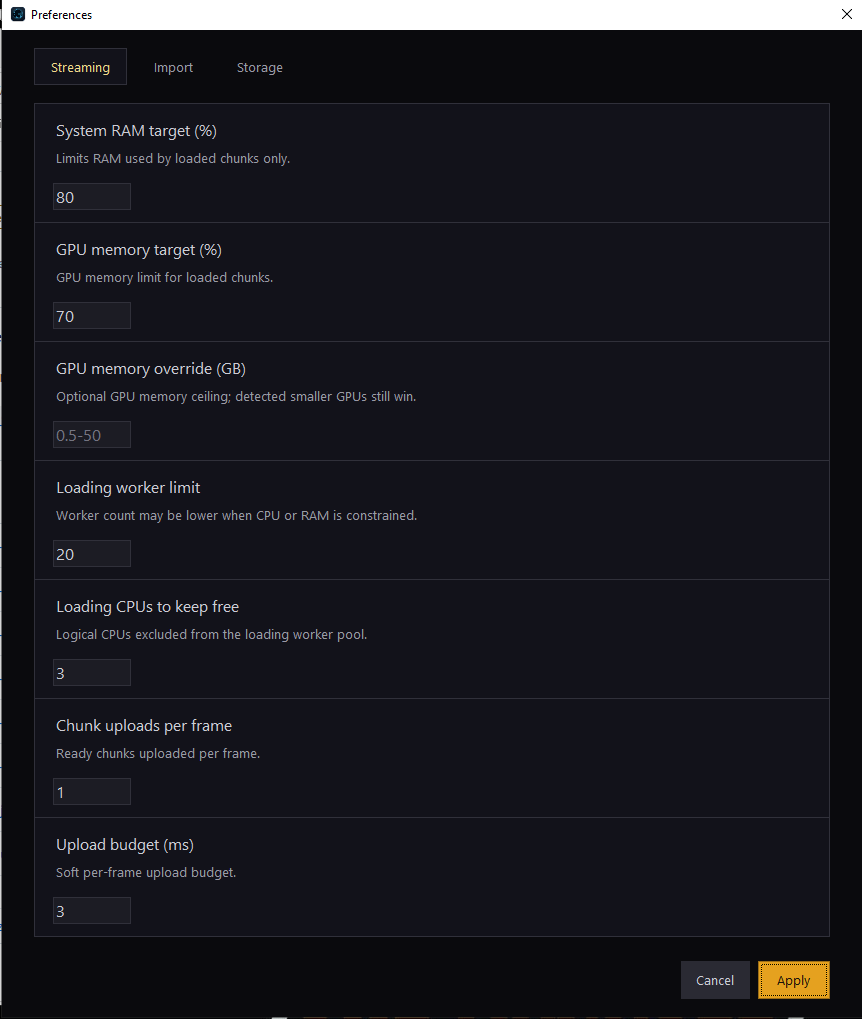

Streaming — runtime memory, worker, and upload behavior.

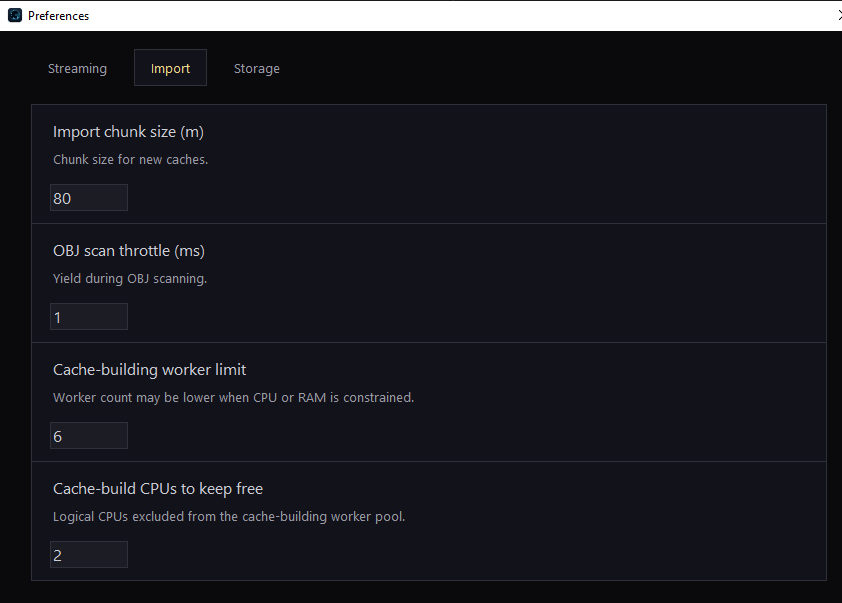

Import — chunk size and cache-build behavior.
Opened from the splash screen's Preferences link. Saved on Linux under ~/.config/caveviewer/; on macOS and Windows under ~/.caveviewer/.
Station 07
Field Notes
The dives behind the data
The scans CaveViewer opens come from real mapping expeditions. Here's footage from two of the systems the tool has been tested and used on.
Watch on YouTube
Wes Skiles Peacock Springs State Park — 3D Mapping Initiative
Peacock Springs, near Live Oak, Florida, is one of the longest underwater cave systems in the continental U.S. — nearly 33,000 feet of surveyed passage across two major springs and six sinkholes. This covers the effort to map it in 3D.
Watch on YouTube
Devil's Eye — Mapping Update, February 2026
Devil's Eye is one of the entrances into the Ginnie Springs cave system in High Springs, Florida, and one of the most-dived training cave systems in the world. This is a progress update from the ongoing effort to map it.
Station 08
Surface
Built by people who use it
CaveViewer started as a way to actually look at the survey data from real dives, not just collect it.
